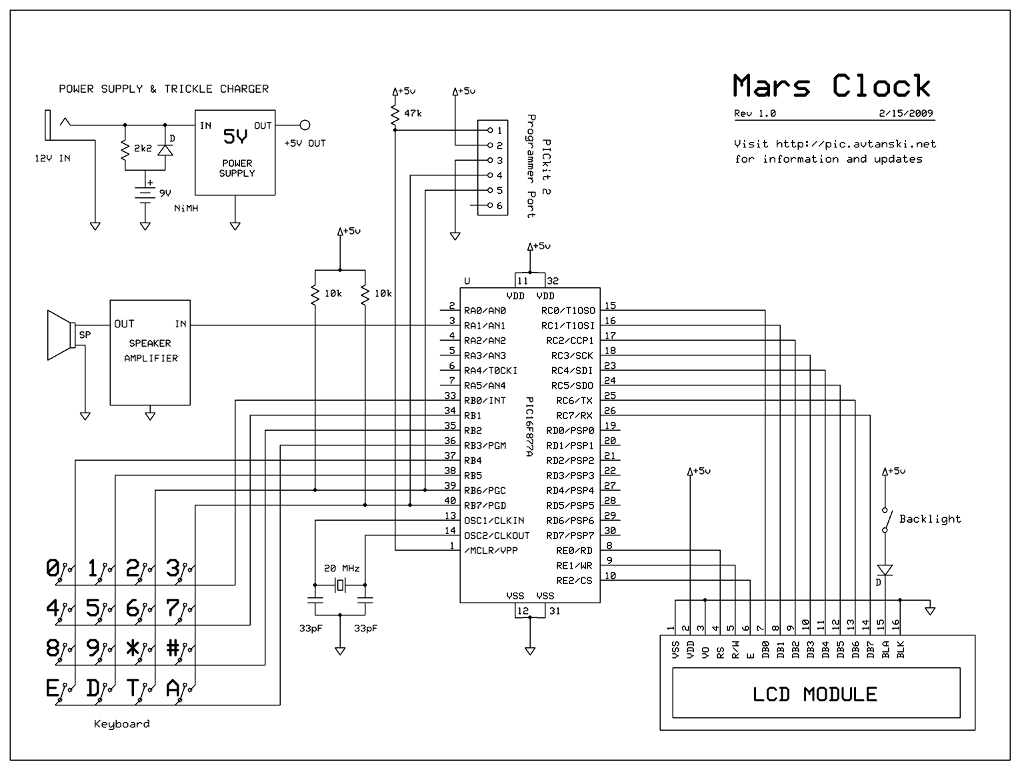

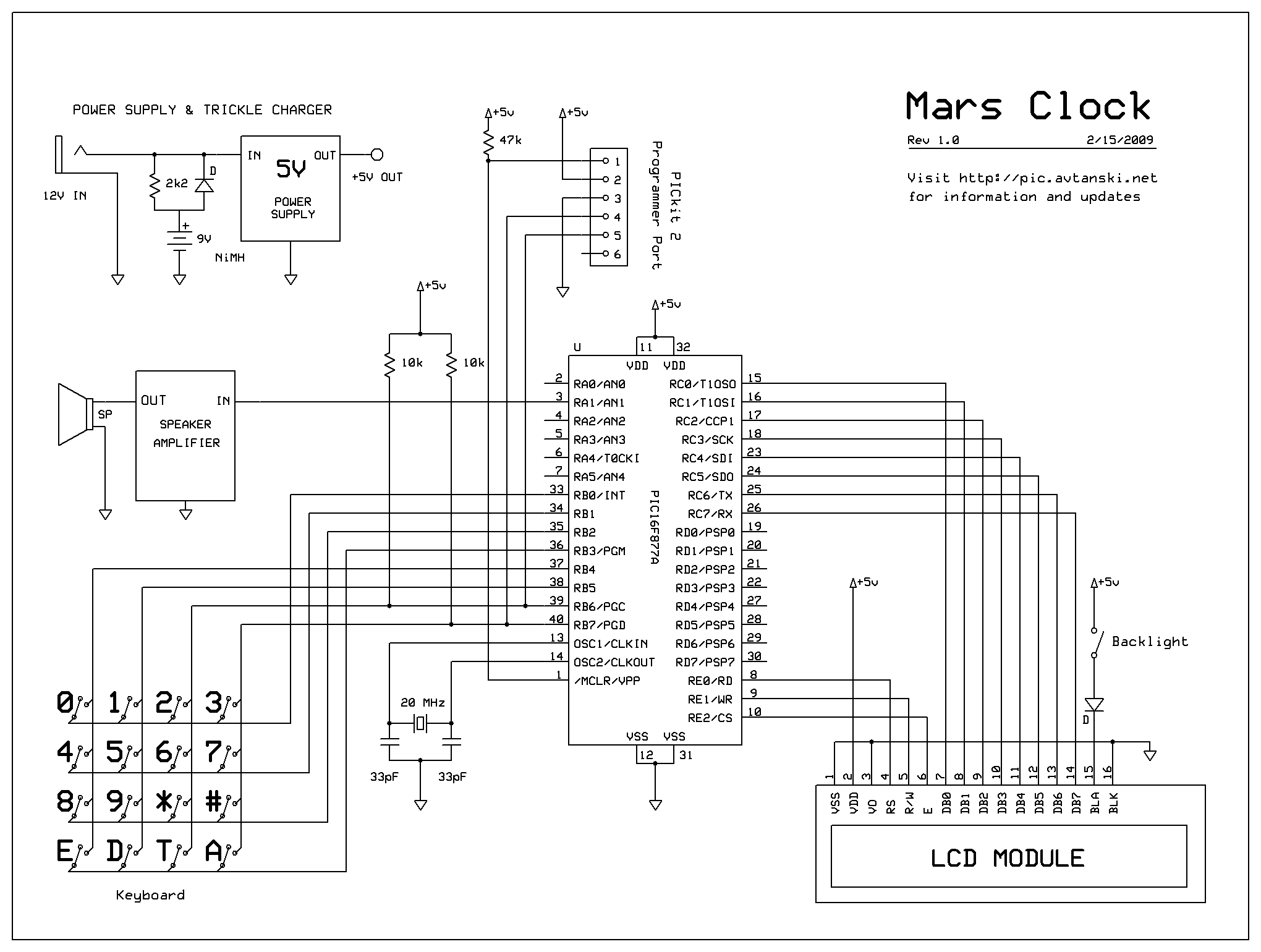

Download schematics in: [High Resolution PNG | Scalable Windows Metafile format (EMF) ]


Notes
  • The 5V Power Supply block contains the voltage stabilizer and filtering capacitors from the power supply on the modem board.
  • The Speaker Amplifier block is the LM386-based amplifier circuit that was on the original modem board. The speaker is the internal modem speaker.

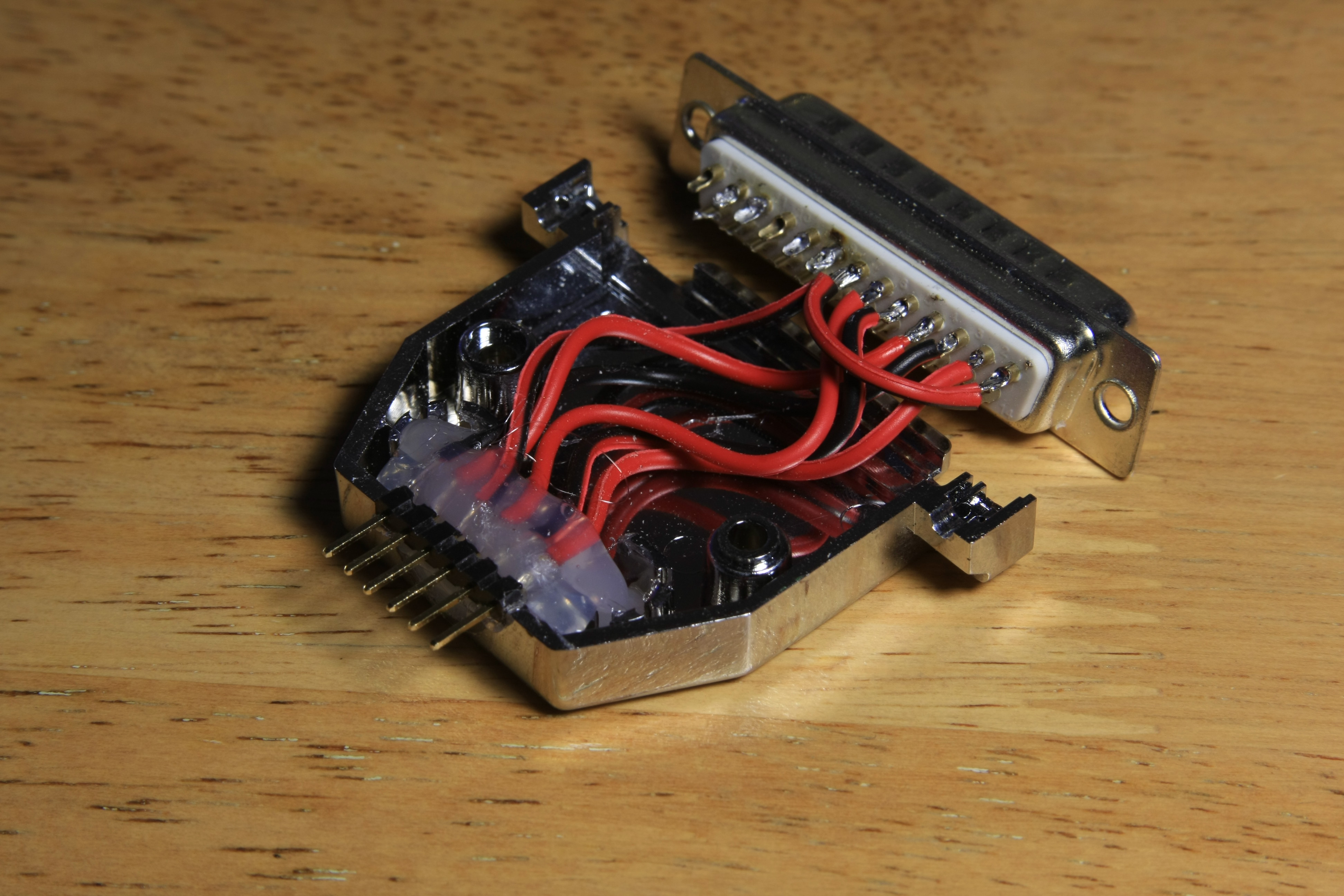

  • The PICkit 2 Programmer port is intended for reprogramming the microcontroller without disassembling the clock. The DB25 to 6-pin adapter (see the picture) is not shown.
  • If your keyboard has different layout than the one shown, refer to Using Different Keyboard in the Code section.
  • I used a Techstar 16 characters * 2 lines LCD Module with backlight. These modules are pretty standard, so almost any 16x2 LCD module will work. Backlight is a plus, but it is not mandatory.
